Details

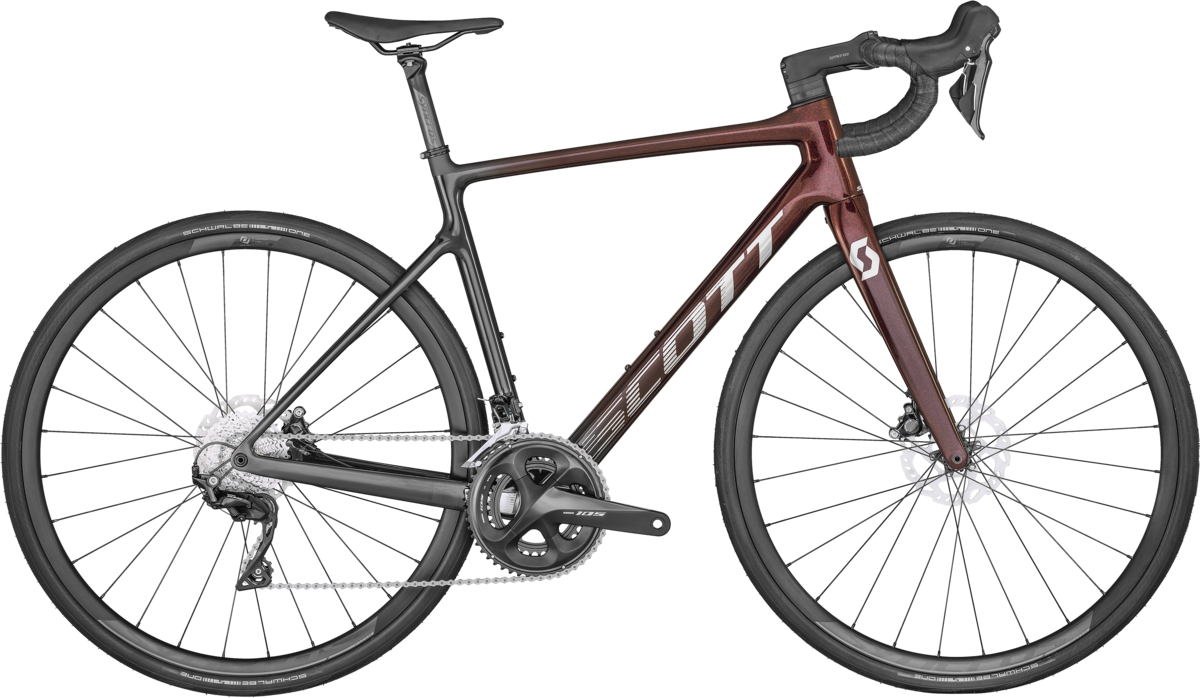

The SCOTT Addict 30 was designed from the ground up with those longer days in mind. With geometry that is less focused on racing and more on enduring, this bike is yearning to eat up some miles!
KEY FEATURES
- Addict Disc HMF Carbon Frame
- Addict HMF Fork
- Shimano 105 Disc, 22 Speed
- Syncros RP2.0 Disc Wheels
- Schwalbe ONE Tires
- Syncros Carbon/Alloy Parts
XXS/47 | XS/49 | S/52 | M/54 | L/56 | XL/58 | XXL/61 | |
---|---|---|---|---|---|---|---|
A. Reach | 376.3 mm | 383.2 mm | 387.0 mm | 390.9 mm | 394.3 mm | 389.6 mm | 406.6 mm |
B. Stack | 517.8 mm | 529.1 mm | 551.6 mm | 572.4 mm | 593.3 mm | 613.6 mm | 632.7 mm |
C. Standover | 732.0 mm | 747.0 mm | 775.0 mm | 790.0 mm | 812.0 mm | 835.0 mm | 848.0 mm |
D. Effective Top Tube | 515.0 mm | 525.0 mm | 540.0 mm | 555.0 mm | 570.0 mm | 585.0 mm | 600.0 mm |
E. Head Tube Angle | 70.5 ° | 71.0 ° | 72.0 ° | 72.5 ° | 73.0 ° | 73.3 ° | 73.3 ° |
F. Head Tube Length | 95.0 mm | 105.0 mm | 125.0 mm | 145.0 mm | 165.0 mm | 185.0 mm | 205.0 mm |
G. Seat Tube Angle | 75.0 ° | 75.0 ° | 74.5 ° | 74.0 ° | 73.5 ° | 73.1 ° | 73.0 ° |
H. Seat Tube Length | 455.0 mm | 475.0 mm | 505.0 mm | 525.0 mm | 545.0 mm | 565.0 mm | 580.0 mm |
I. Bottom Bracket Height | 275.3 mm | 275.3 mm | 275.3 mm | 275.3 mm | 275.3 mm | 275.3 mm | 275.3 mm |
J. Bottom Bracket Drop | -70.0 mm | -70.0 mm | -70.0 mm | -70.0 mm | -70.0 mm | -70.0 mm | -70.0 mm |
M. Wheelbase | 996.7 mm | 1,003.0 mm | 1,005.0 mm | 1,010.6 mm | 1,015.4 mm | 1,022.8 mm | 1,036.5 mm |
O. Chainstay Length | 420.0 mm | 420.0 mm | 420.0 mm | 420.0 mm | 420.0 mm | 420.0 mm | 420.0 mm |
Stem Length | 73.0 mm | 83.0 mm | 93.0 mm | 103.0 mm | 103.0 mm | 113.0 mm | 113.0 mm |
Bottom Bracket to Top Tube Center | 415.0 mm | 435.0 mm | 465.0 mm | 485.0 mm | 505.0 mm | 525.0 mm | 540.0 mm |
Specs
Frame |
Addict Disc HMF Carbon Endurance geometry / Replaceable derailleur hanger Internal cable routing Syncros fender kit ready |
---|---|
Fork | Addict HMF Disc / 1 1/4"-1 1/2" Eccentric Carbon steerer |
Wheels |
Syncros RP2.0 Disc 28 Front / 28 Rear Syncros axle w/removable lever with tool |
Tires | Schwalbe ONE Fold / 700x32c |
Bottom Bracket | Shimano BB-RS500-PB |
Crankset | Shimano FC-R7000 Compact / Hyperdrive / black |
Chainrings | 50x34T |
Shifters | Shimano 105 ST-R7020 Disc / Dual control 22-speed |
Front Derailleur | Shimano 105 FD-R7000 black |
Rear Derailleur | Shimano 105 RD-R7000-GS black |
Cassette/Freewheel | Shimano CS-R7000 / 11-32T |
Chain | KMC X11 |
Brakes | Shimano BR-R7070 hydraulic disc |
Rotors | Shimano SM-RT70 CL rotor 160/F and 160/R |
Handlebars | Syncros Creston 2.0 Compact / alloy 31.8mm |
Stem | Syncros RR2.0 / 1 1/4" / four-bolt / 31.8mm |
Headset | Acros AIF-1112 |
Seatpost | Syncros RR1.2 / 27.2/350mm |
Saddle | Syncros Tofino Regular 2.0 Channel |
Pedals | Sold separately |
* Subject to change without notice.
Part Numbers
Option | UPC | MPN | Store SKU |
---|---|---|---|
Red / 52cm | 192820603407 | 286426052 | 210000034169 |
Red / 54cm | 192820603414 | 286426054 | 210000034268 |
Red / 56cm | 192820603421 | 286426056 | 210000034269 |
